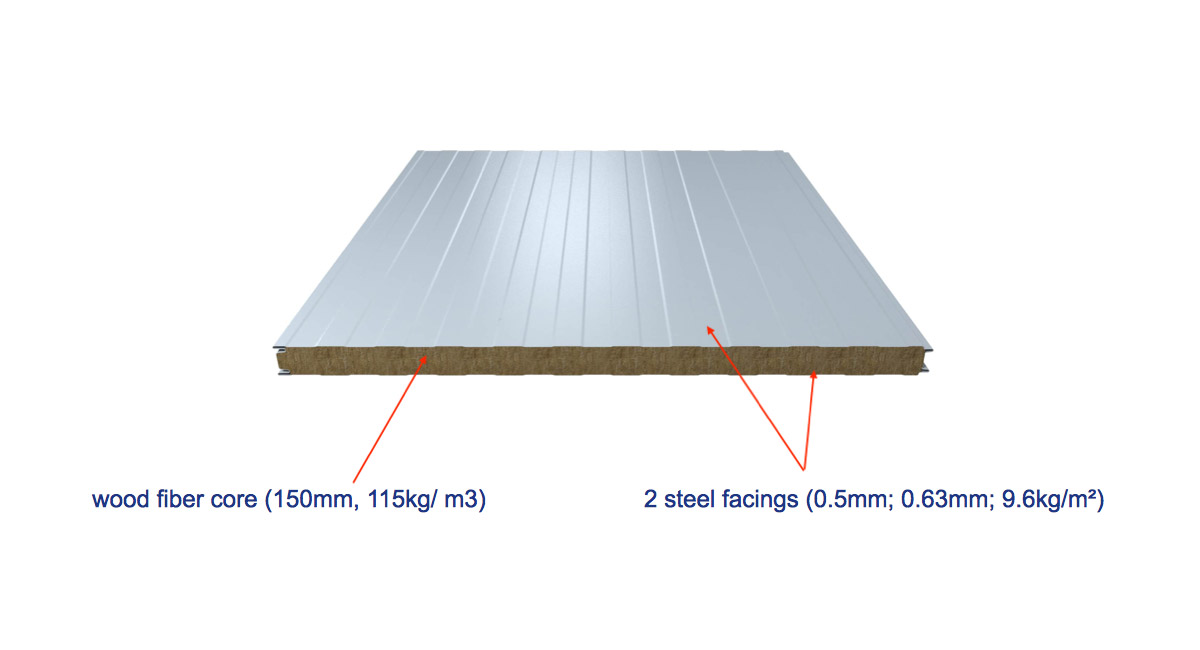

Cladding sandwich panel with two steel facings and a wood fiber core of 150 mm thickness
| Performances | CLADDING SANDWICH PANEL (150MM) |
|---|---|
| Mechanical span validated | 6m - 14.97 kN |
| Diaphragm 3m x3m | 4.8 kN/150mm |
| Seismic | Pass |
| Thermal (Up) |
0.38 W/m².K (150mm) 0.29 W/m².K (200mm) |
| Thermal choc | Pass |
| Reaction to fire | Bs1d0 |
| Resistance to fire |
External wall : EI 30 (i→o) Partition : EI 45 |
| Facade test propagation | Pass |
| External fire roof performance | Not relevant |
| Smouldering | Yes |
| Water permeability | Class A 1200 Pa |
| Air permeability |
1.1≤ n p≤1.5 c=0 1.3≤ n s≤1.7 c =0 |
| Acoustic | Rw(C,Ctr) 29 (-1 ;-3) dB |
| Fungi test | Sensible |
| Durability |
Pass Dur2 EN 14509 Pass demonstrator 2 years |
| Climate change- total A-D (kg CO2 equiv/UF) |
Panel 200 mm :23,9 Panel 150 mm: 22,6 |
| Wood fiber sourcing | PEFC label |

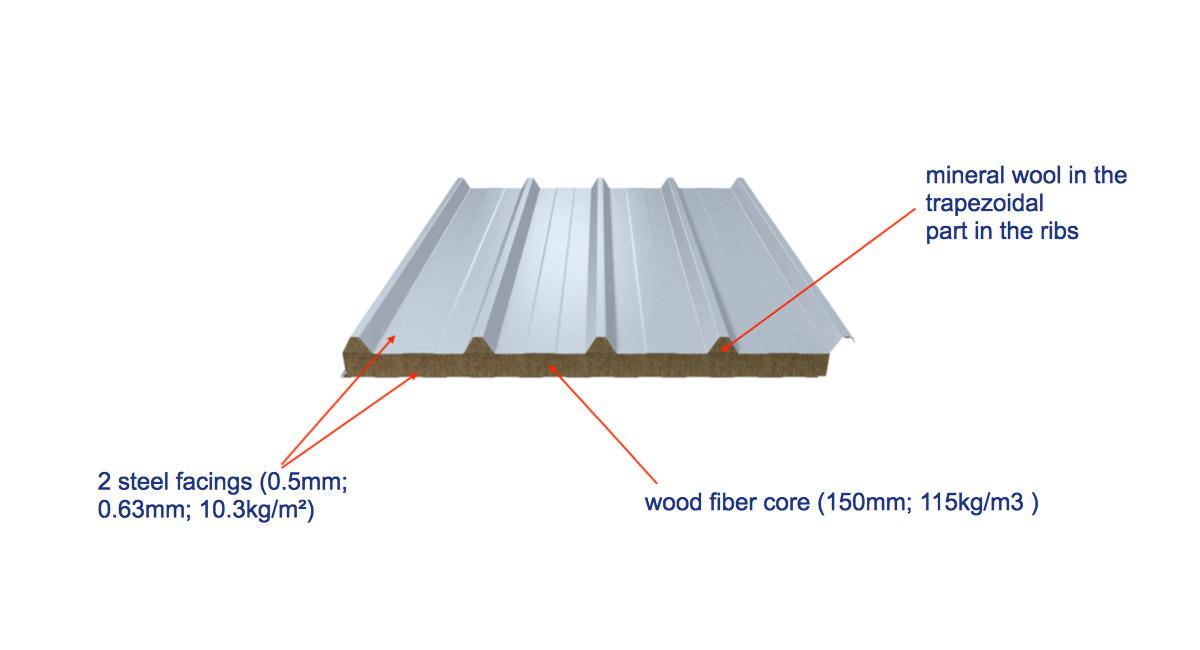

Pitch roofing sandwich panel with two steel facings and a wood fiber core of 150 mm thickness
| Performances | PITCH ROOFING SANDWICH PANEL (150MM) |
|---|---|
| Mechanical span validated | 6m - 19.29 kN |
| Diaphragm 3m x3m | 8.2 kN / 150mm |
| Seismic | Pass |
| Thermal (Up) |
0.35 W/m².K (150mm) 0.28 W/m².K (200mm) |
| Thermal choc | Not tested |
| Reaction to fire | Bs1d0 |
| Resistance to fire | REI 30 25kg/m² |
| Facade test propagation | Not relevant |
| External fire roof performance | Tendency Brooft1 |
| Smouldering | Yes |
| Water permeability | Class A 1200 Pa |
| Air permeability |
n p 1.4 c = 0 n s 1.2 c = 0 |
| Acoustic | Rw(C,Ctr) 30 (-1 ;-3) dB |
| Fungi test | Sensible |
| Durability |
Pass Dur2 EN 14509 Pass demonstrator 2 years |
| Climate change- total A-D (kg CO2 equiv/UF) |
Panel 200 mm :25,9 Panel 150 mm : 24,6 |
| Wood fiber sourcing | PEFC label |

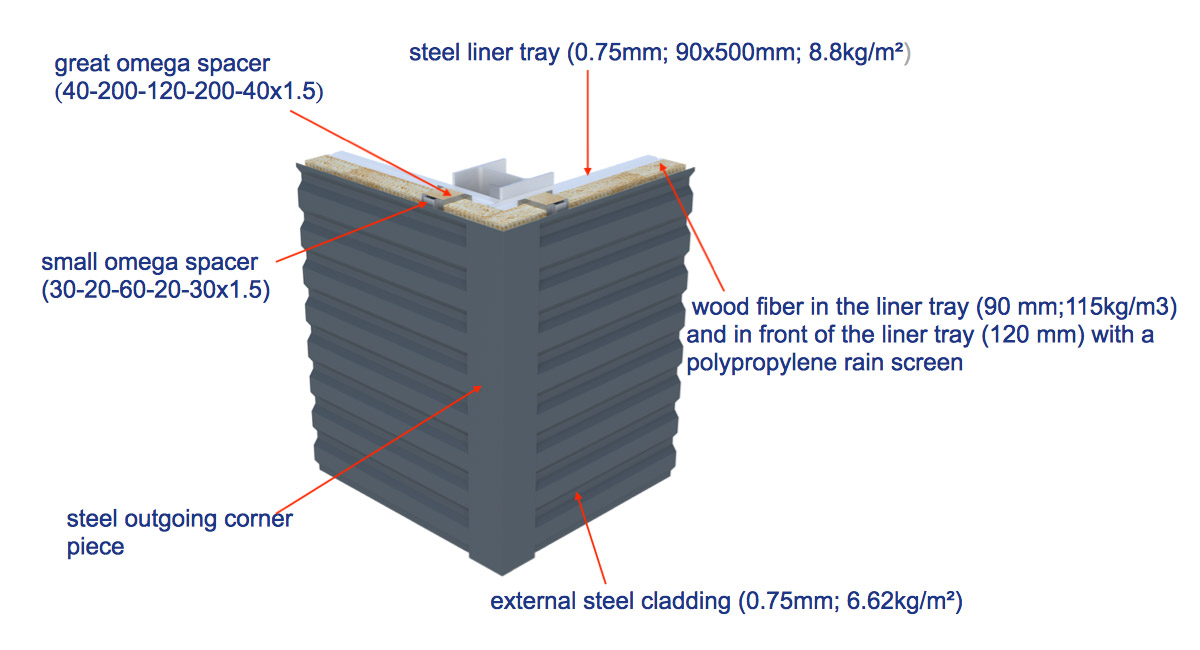

Double skin cladding system with wood fiber insulation materials
| Performances | Double skin system |
|---|---|
| Mechanical span validated | 6m |
| Diaphragm 3m x3m | 29.8 kN / 150mm |
| Seismic | Rigidity of the system tested greater than the rigidity of the test bench. Test stopped |
| Thermal (Up) |
0.24 W/m².K with profile 0.30 W/m².K with cassettes |
| Thermal choc | Not relevant |
| Reaction to fire | Bs2d0 |
| Resistance to fire |
External wall: E90 EI30 (io) Partition: E90 EI45 |
| Facade test propagation |
Not pass Necessity to have mineral wool strip to the x meters |
| External fire roof performance | Not relevant |
| Smouldering | Yes |
| Water permeability | Class A 1200 Pa |
| Air permeability | n p 0.8 c = 0.3 |
| Acoustic | Rw(C,Ctr) 49 (-2 ;-9) dB |
| Fungi test | Sensitive |
| Durability |
Not relevant Pass demonstrator 2 years |
| Climate change- total A-D (kg CO2 equiv/UF) | 36,3 |
| Wood fiber sourcing | PEFC label |

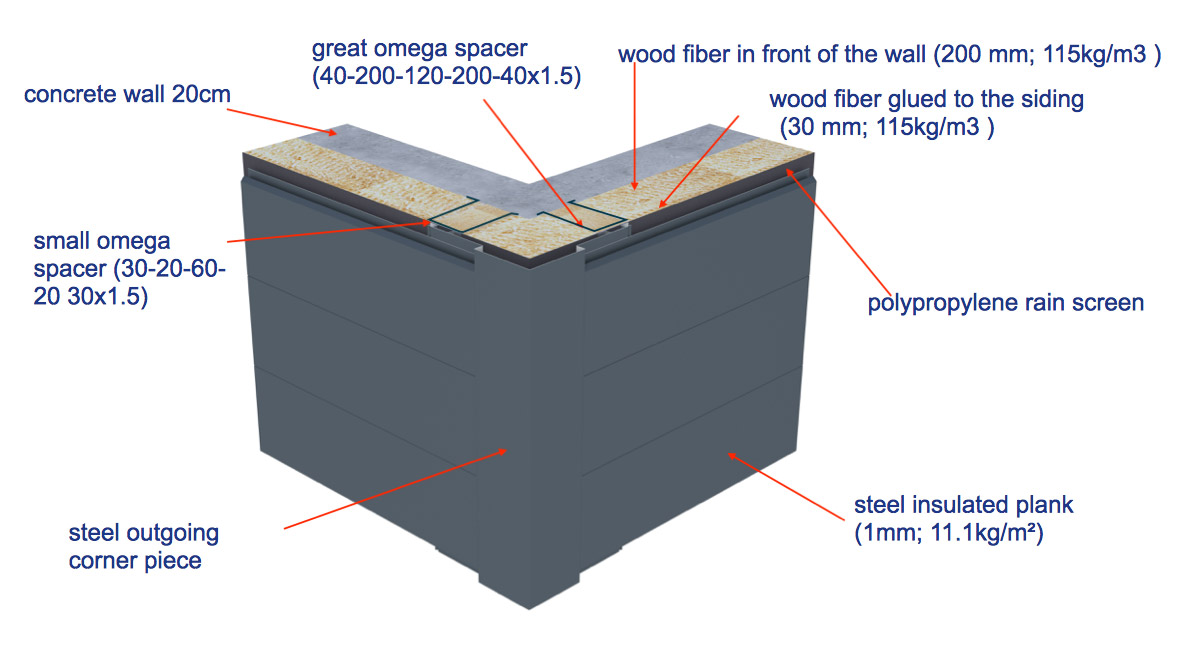

Façade cladding system with a wood fibre layer bonded to the cassette (bordered plank)
| Performances | Facade cladding |
|---|---|
| Mechanical span validated | 2m |
| Diaphragm 3m x3m |
Not relevant. Depends on the wall that supports the plank elements |
| Seismic | Not tested |
| Thermal (Up) | >0.25 W/m².K with wall |
| Thermal choc | Not relevant |
| Reaction to fire | Not tested |
| Resistance to fire |
Not tested Depends on the wall that supports the plank elements |
| Facade test propagation | Not tested |
| External fire roof performance | Not relevant |
| Smouldering | Yes |
| Water permeability |
Pass Depends on the wall that supports the plank elements |
| Air permeability |
Pass Depends on the wall that supports the plank elements |
| Acoustic | >30 db (effect of wall) |
| Fungi test | Sensitive |
| Durability |
Not relevant Pass Demonstrator 2 years |
| Climate change- total A-D (kg CO2 equiv/UF) | 32,0 |
| Wood fiber sourcing | PEFC label |

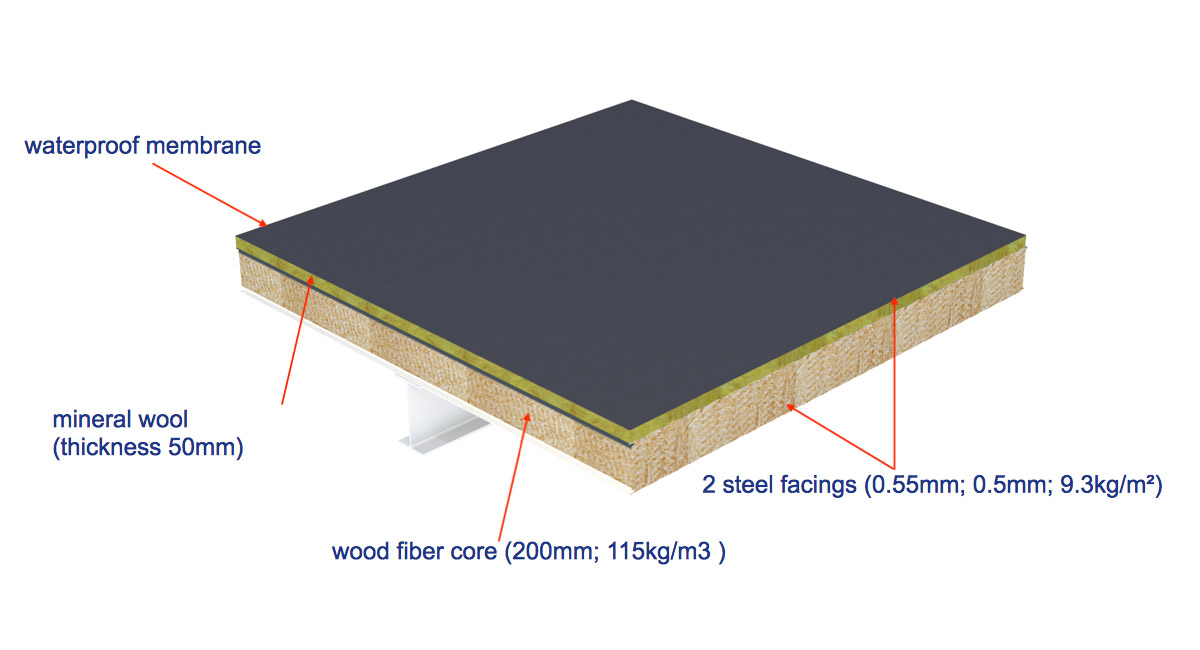

Flat roofing sandwich panel with two steel facings and a wood fiber core of 200mm of thickness completed by a mineral wool insulation and a waterproof membrane
| Performances | Flat roofing sandwich panel (200mm) |
|---|---|
| Mechanical span validated | 3m |
| Diaphragm 3m x3m | 10 KN / 150mm |
| Seismic | Pass |
| Thermal (Up) | 0.15 W/m². K |
| Thermal choc | Pass for use in facade |
| Reaction to fire | Bs1d0 |
| Resistance to fire |
No pass in the case of roof (80kg/m²) EI 60 cladding |
| Facade test propagation | Not relevant |
| External fire roof performance | Broof t1 with insulation and membrane |
| Smouldering | Yes |
| Water permeability | Class A 1200 Pa |
| Air permeability |
Results for panel: N p 0.8 c 0.2 N s 0.9 c 0.1 Results for panel+insulation+membrane: N p 2.1 c 0 N s 2.0 c 0 |
| Acoustic | Rw(C,Ctr) 33(-1 ;-4) dB |
| Fungi test | Sensitive |
| Durability |
Pass Dur2 EN 14509 Pass demonstrator 2 years |
| Climate change- total A-D (kg CO2 equiv/UF) | 43,3 |
| Wood fiber sourcing | PEFC label |
